Getting Started with Microsoft O365 (Admin Setup for Federated Email)

Registering BOLD Email Integration as an App in Microsoft 365 enables BOLD to authenticate to your Microsoft 365 tenant on behalf of BOLD users using their user account. By default, a newly registered App won't have any Permissions, so you'll also need to assign appropriate roles to the application to enable BOLD Email Integration to sync Microsoft 365 mailboxes and send emails.



CHAPTERS

Admin Setup
    Register the App
    Create Client Secret
    Copy the Application ID

    Add API Permissions
    Setup to Configure Web Application Authentication
Create User Groups
Add a new Group to the Application
References
    Outlook Service Limits



Admin Setup



Register the App

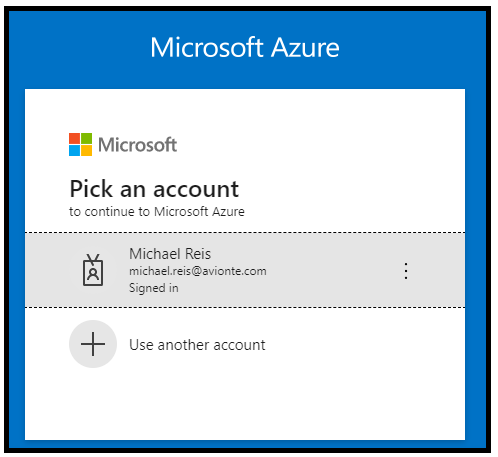

  1. Log into the Office 365 portal
    1. Link to the Office 365 portal

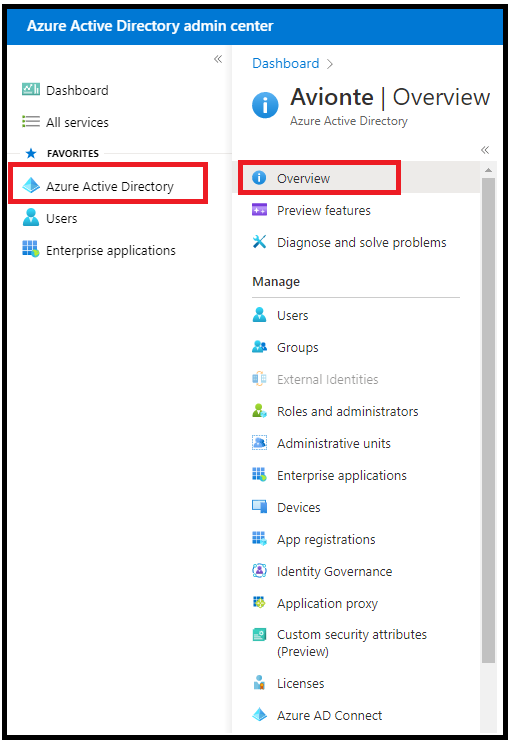

  2. Click on Azure Active Directory
  3. Click on Overview

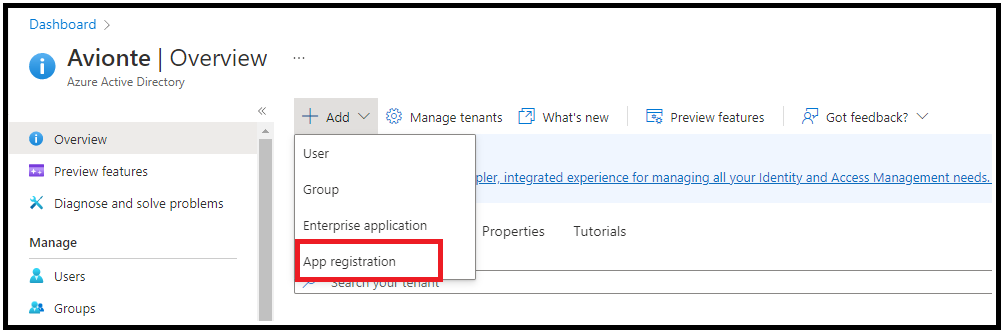

  4. Click on the Add button


  5. Click on App registration

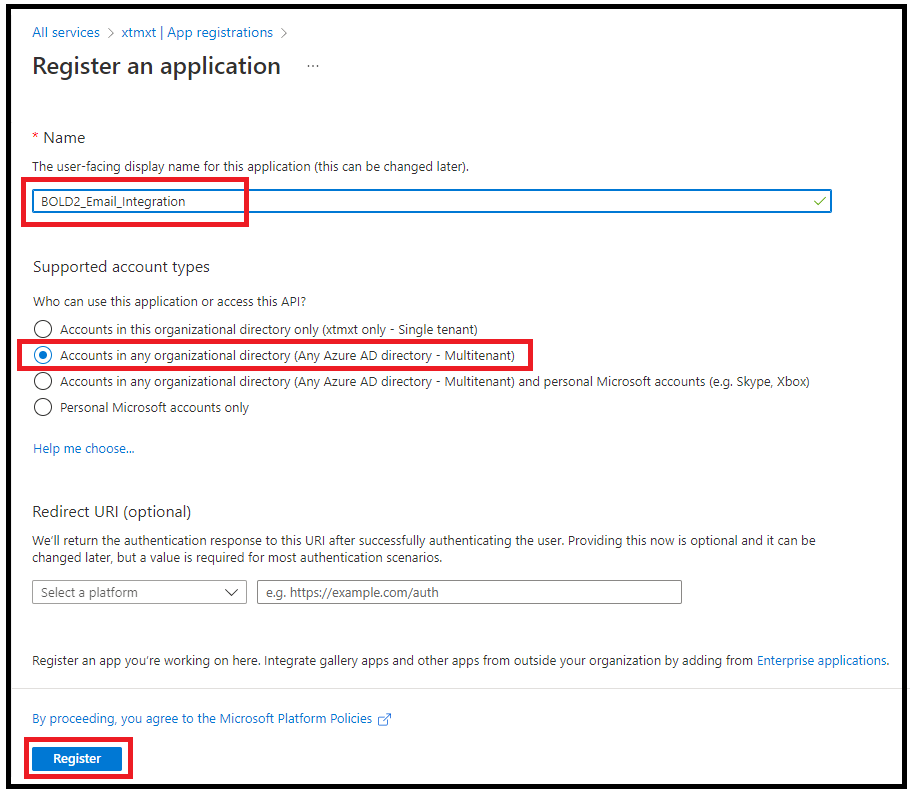

  6. Enter a name for the application, in the Name field
    1. Suggested to use: Bold_Email_Integration
      Note: We recommend not to include any spaces and use underscores instead.
  7. Select the Accounts in any organizational directory (Any Azure AD directory - Multitenant) option
  8. Click on the Register button

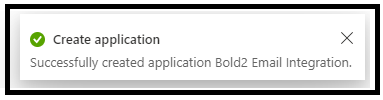

    A prompt will appear in the upper right corner, showing it was successful.




Create Client Secret

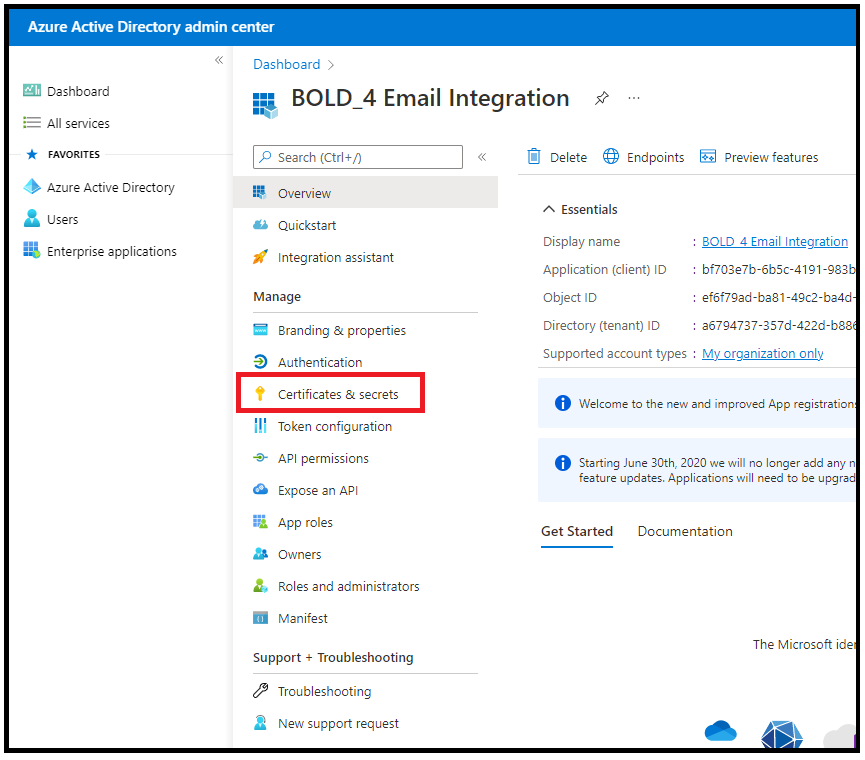

  1. Click on the Certificates & secrets section
    1. Copy the Application (client) ID since it will be used in a later step.
      Adding the Application (client) ID

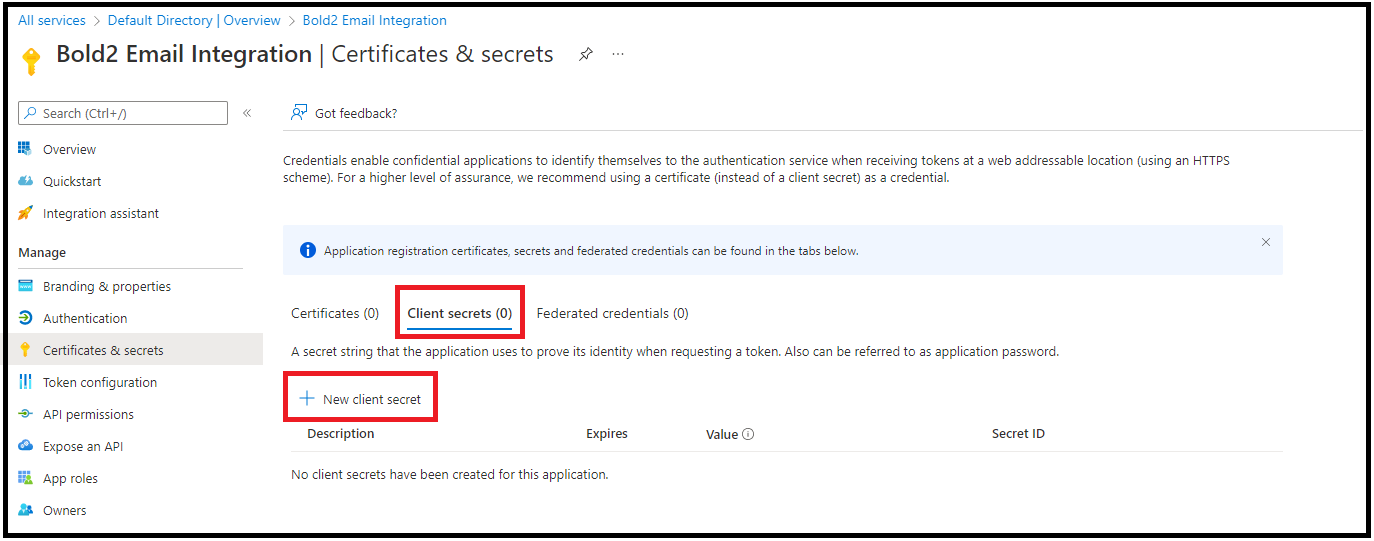

  2. Click on the Client secrets section
  3. Click on the New client secret button
    Note: After creation be sure to save the client secret as it will only be available for a short time.
    This and the application (ClientId) will need to be configured in Utilities in a later step

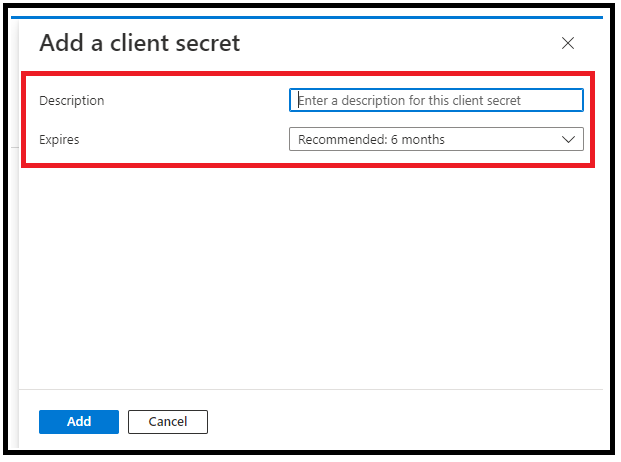

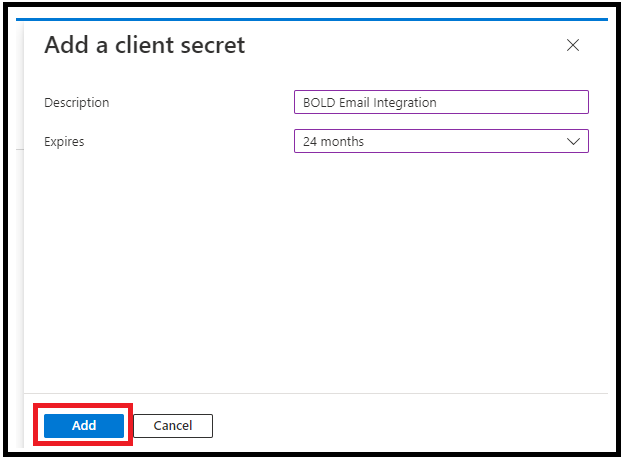

  4. Enter a name in the Description field
  5. Select the expiration from the Expires drop down field.
    1. We recommend selecting 24 months.


  6. Click on the Add button

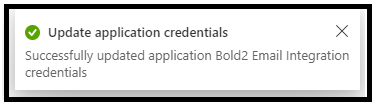

    A prompt will appear in the upper right corner, showing it was successful.

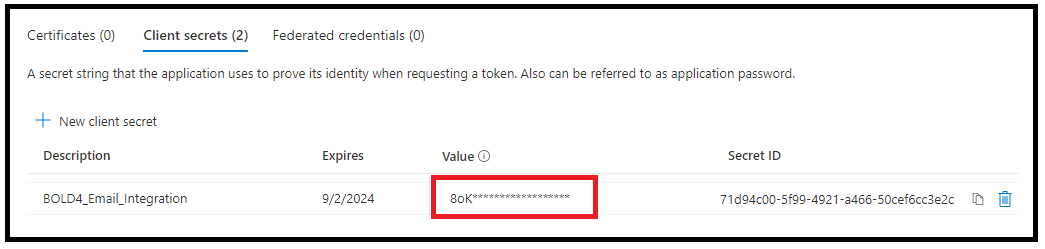

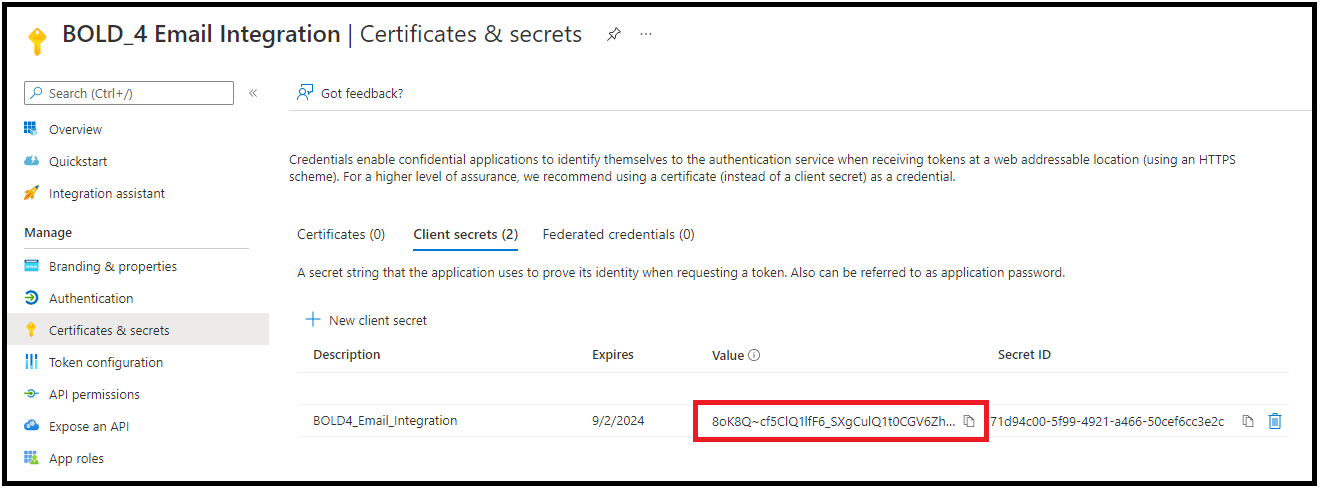

  7. The Secret Value field will only be displayed on this screen.  Once you navigate to another area, the Secret Value will never be displayed again.

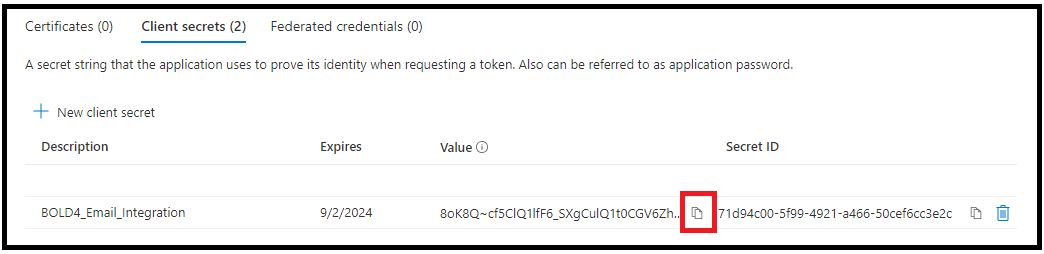

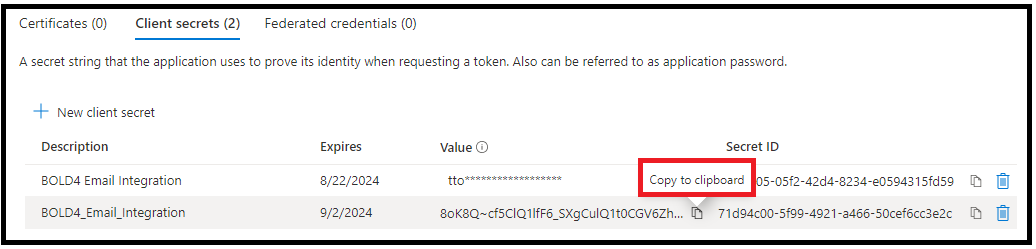

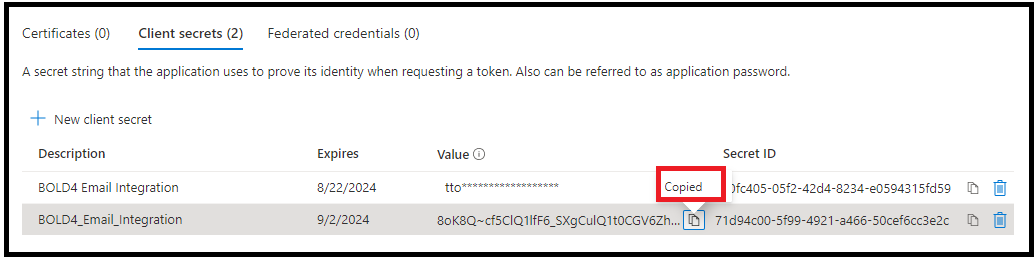

  8. Hover the mouse to the new Paper image icon


  9. Click on the Copy to clipboard link


  10. Paste the value of the Secret Value, in a location to be used for later set up.
    Note: The Secret Value must be copied here since it will not be displayed again.


    Example of Secret Value no longer being displayed.






Copy the Application ID

Copy the Application (client) ID and Client credentials to add into AviontéBOLD.

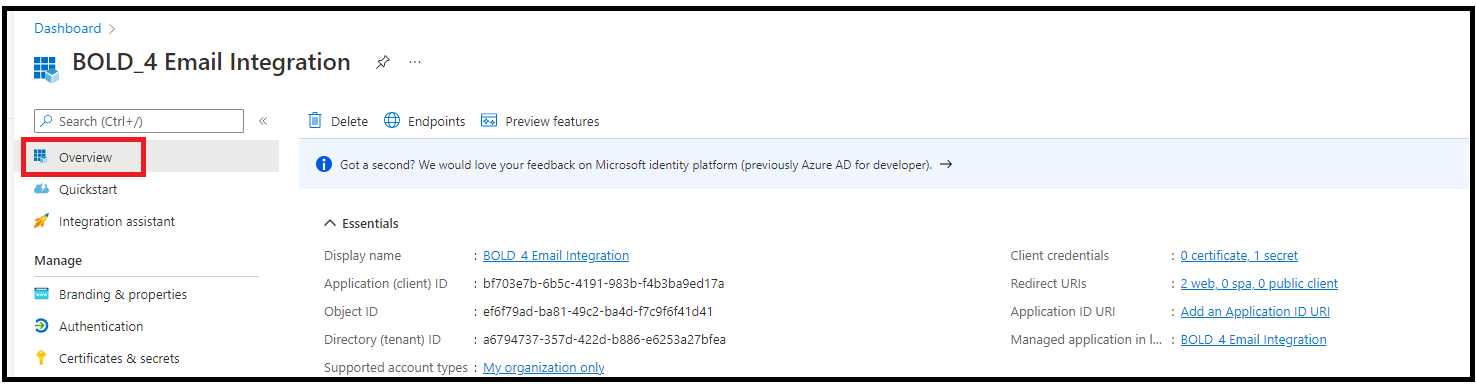

  1. Click on Overview

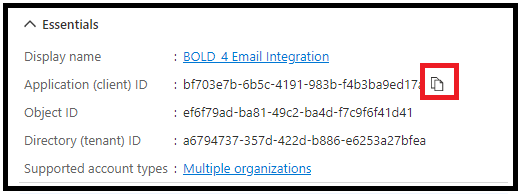

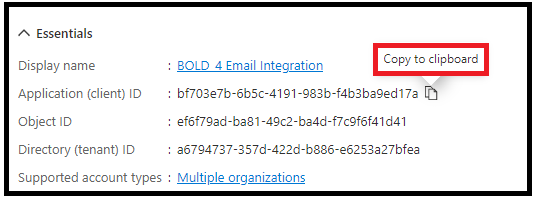

  2. Hover over the Application (client) ID field.
    A Paper image icon will show


  3. Hover the mouse to the new Paper image icon

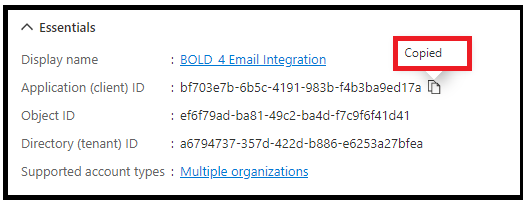

  4. Click on the Copy to clipboard link


  5. Paste the value of the Application ID, in a location to be used for later set up.
    Inputting the Application ID and Client secret





Add API Permissions

  1. Click on the API Permissions section

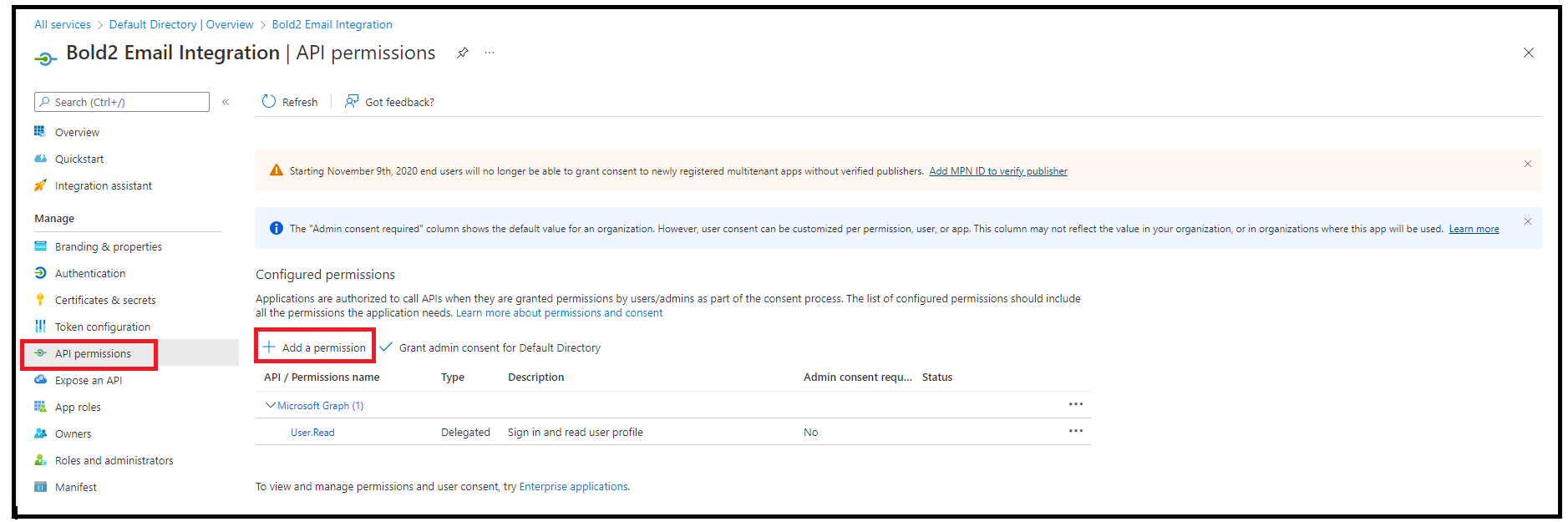

  2. Click on the Add a Permission button

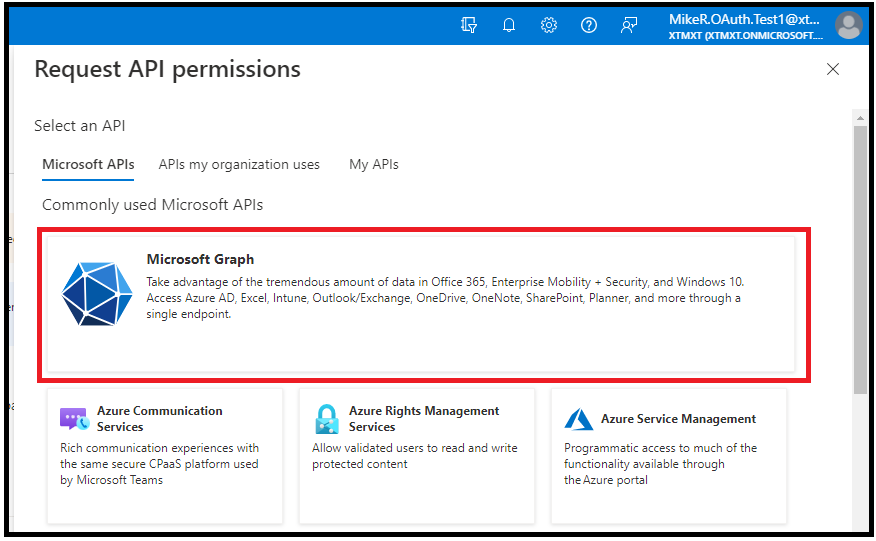

  3. Click on the Microsoft Graph tile

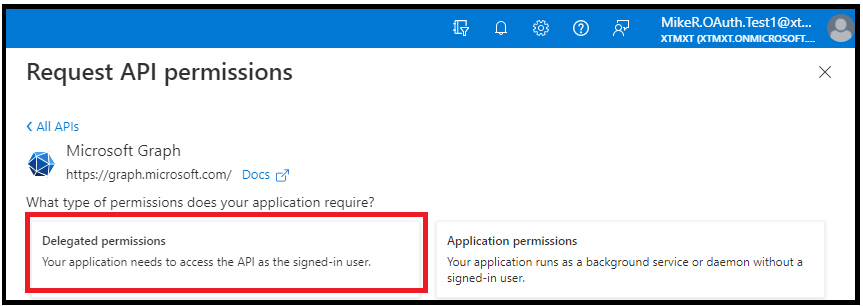

  4. Click on the Delegated Permissions tile

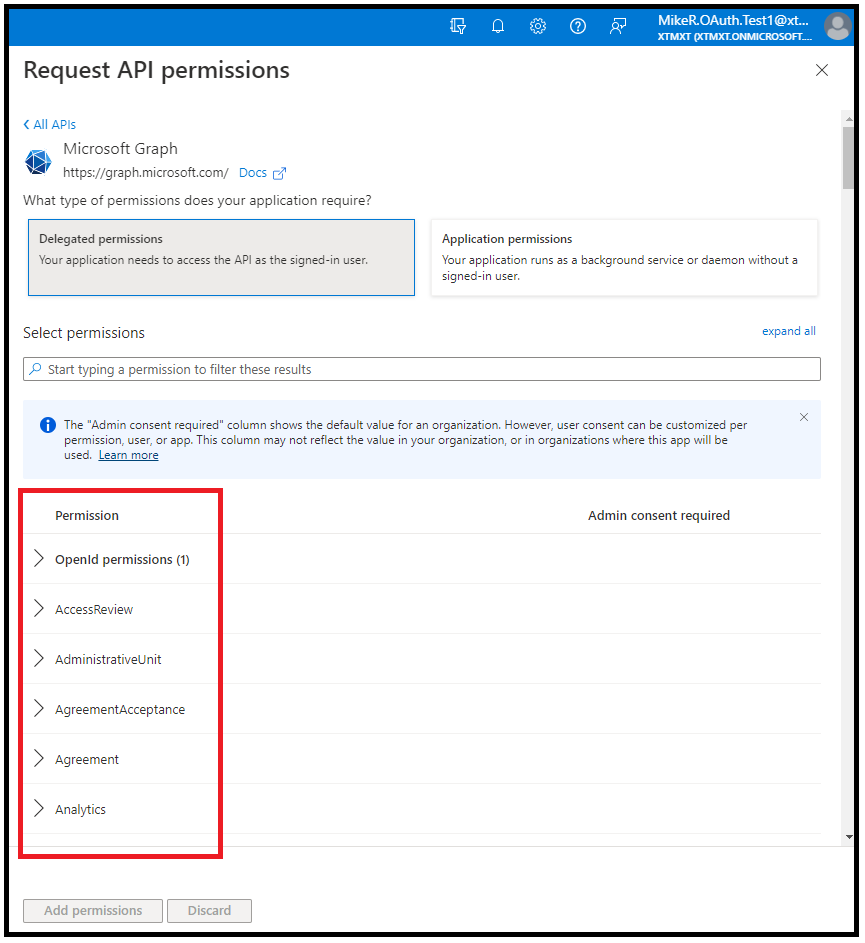

  5. Select the following options from the Sections:


  6. Add the following Permissions, by clicking the checkboxes:

    Details for API/Permissions

    Located in Section API / Permission Name Type Description Admin Consent required
    OpenId Permissions openid Delegated

    Sign in and read user profile

    No
    Mail Mail.Read Delegated Read user mail No
    Mail Mail.Send Delegated Sign users in No
    User User.Read Delegated Send mail as a user No

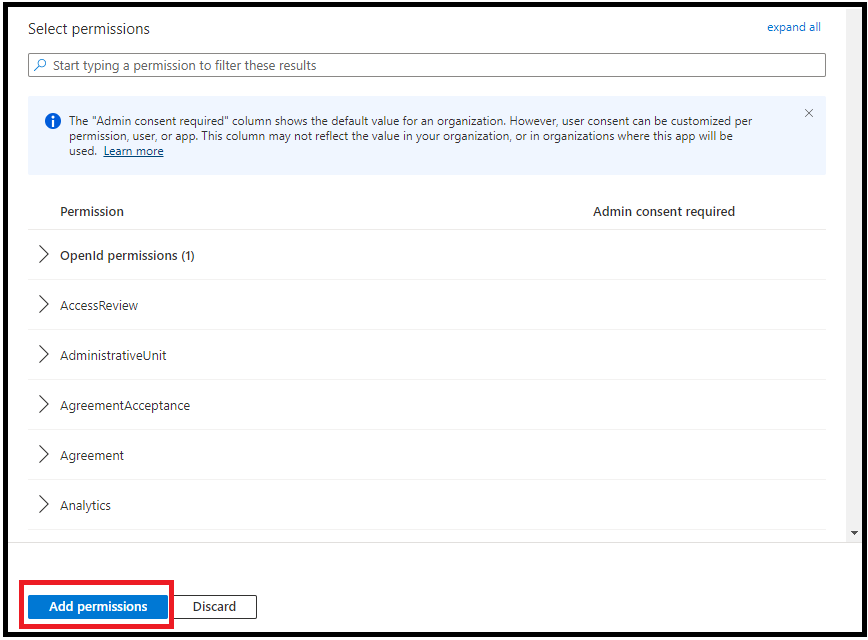

  7. Click on the Add Permissions button


  8. A prompt will appear in the upper right corner, showing it was successful.


  9. Ensure that all the APIs/Permissions are listed:
    Details of the APIs/Permissions

    Ensure that all the APIs:Permissions are listed.png

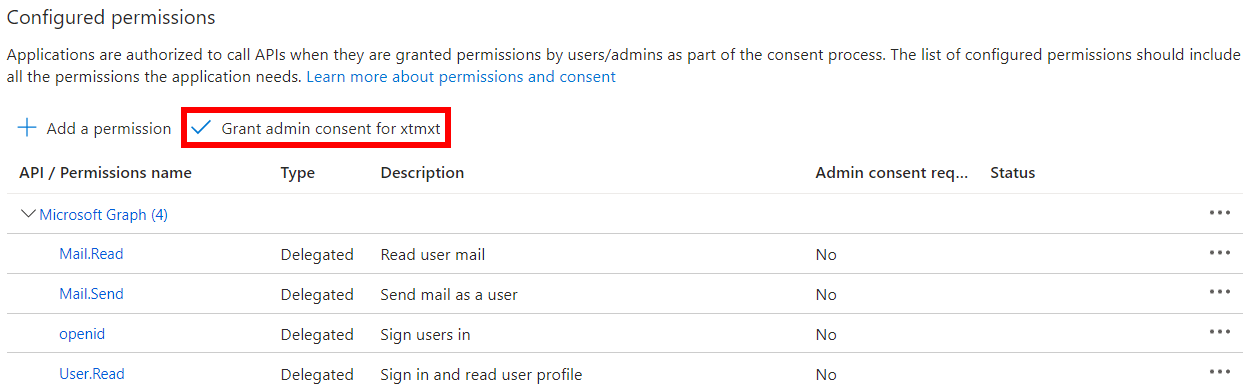

  10. Click on the Grant admin consent for xtmxt button
    Note: Replace "xtmxt" with "Your Tenant Name"
    1. This option may be grayed out (unavailable), without the proper Permissions.
      Microsoft on Azure AD roles

      Grant admin consent for xtmxt.png


      A prompt will appear in the upper right corner, showing it was successful.

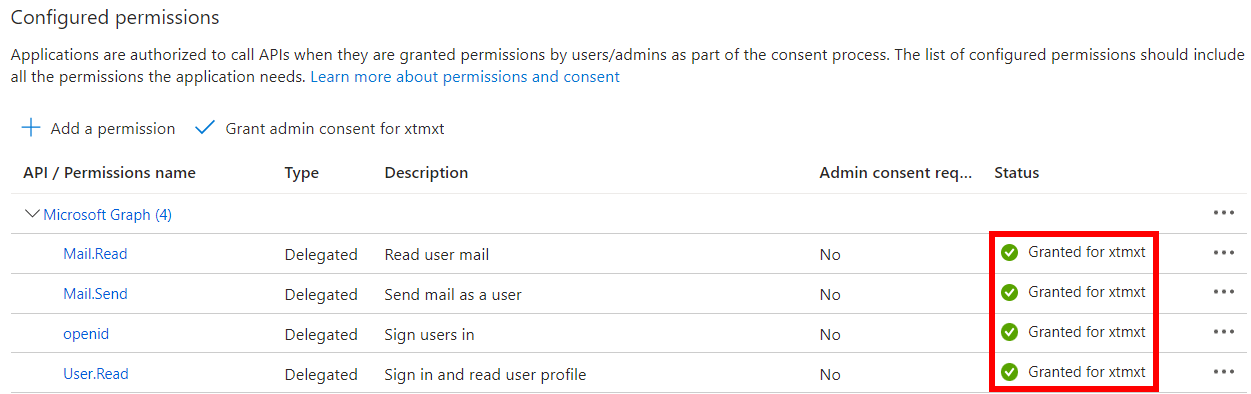

  11. Notice the status is updated to Granted for xtmxt
    Note: "xtmxt" is just an example name and will be different than yours.
    Granted for xtmxt.png

Setup to Configure Web Application Authentication

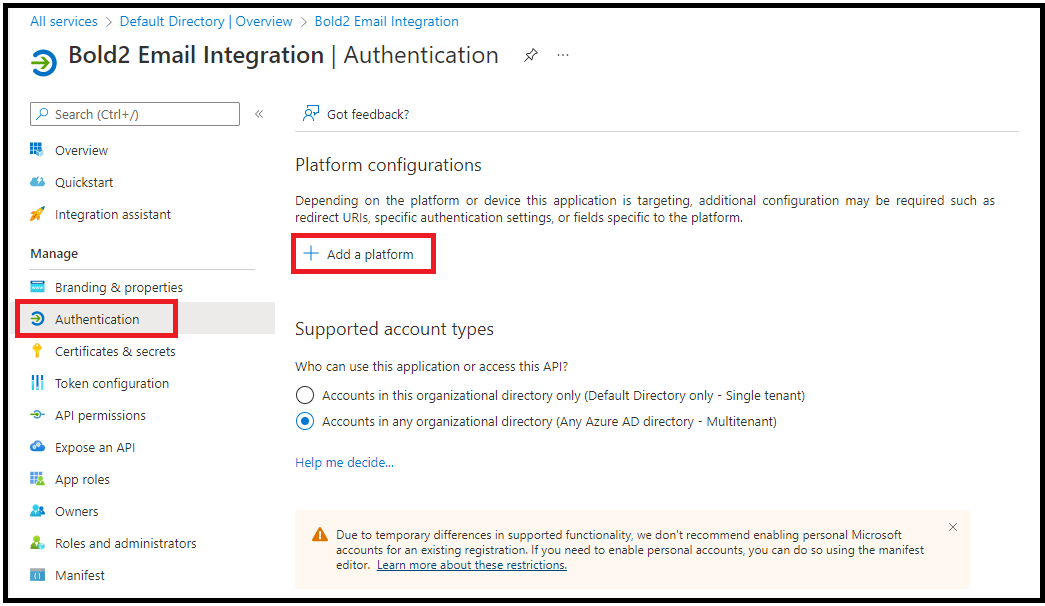

  1. Click on the Authentication section
  2. Click on the Add a platform button

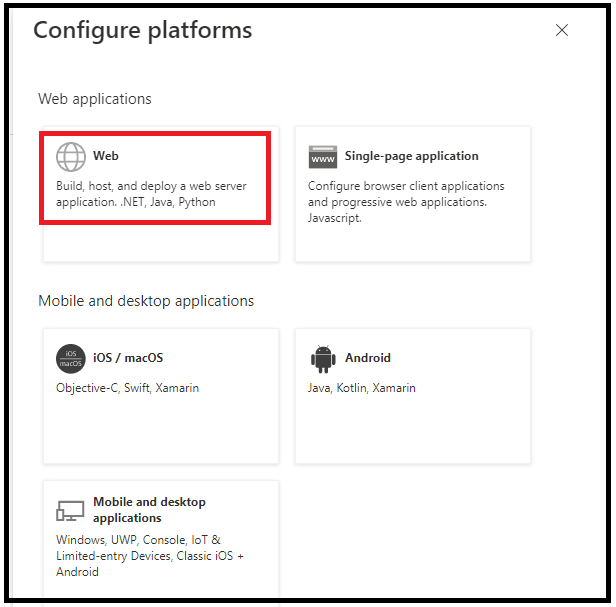

  3. Click on the Web tile


  4. Enter the following link into the Redirect URIs field
    1. Replace clientname with your company's subdomain
      1. https://clientname.myavionte.com/sonar/api/oauth2/CallbackFederatedAuthTokenSend

        Finding your Build/Install Name

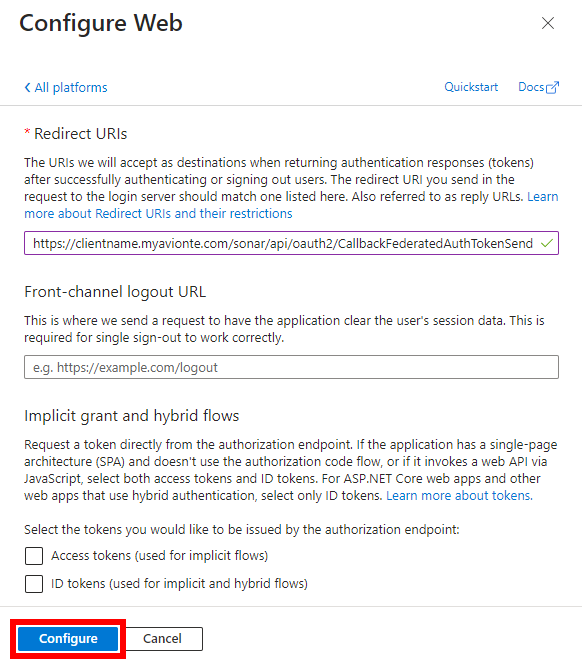

  5. Click on the Configure button
    Configure Web - click on the Configure button.png

    A prompt will appear in the upper right corner, showing it was successful.




Create User Groups

Create a user group that has access to this new application and assign users that are allowed BOLD Email Integration.

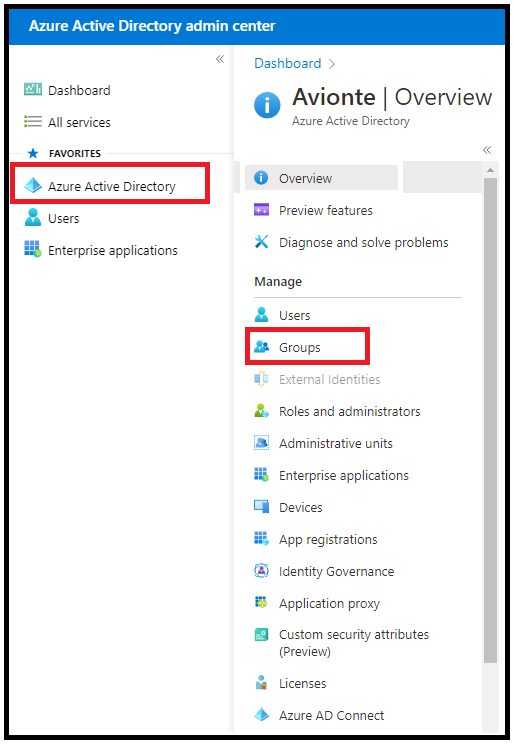

  1. Ensure you are on the Groups Section.
    1. Click on Azure Active Directory
    2. Click on the Groups section

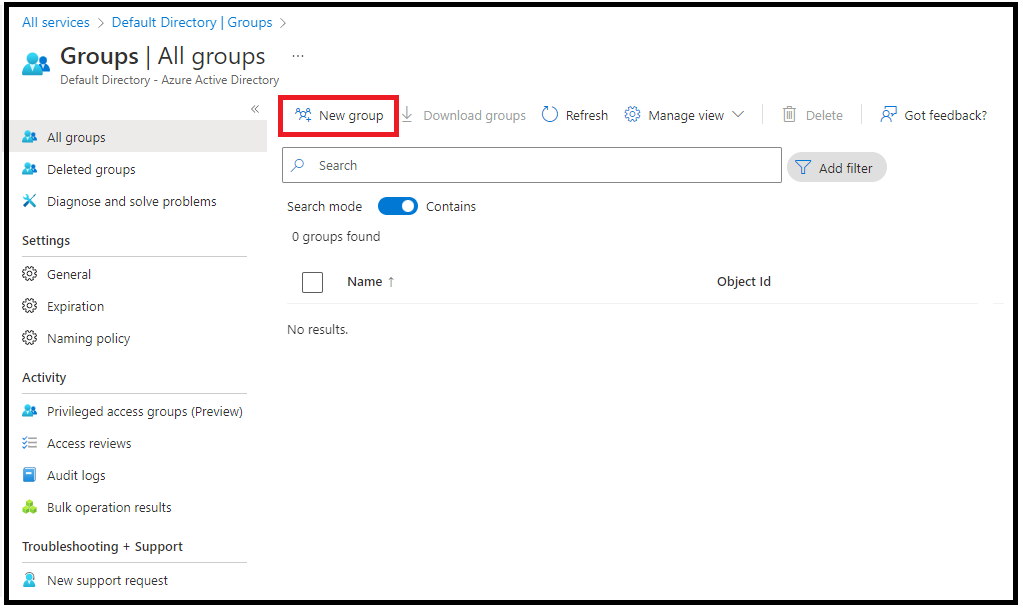

    3. Click on the New group button

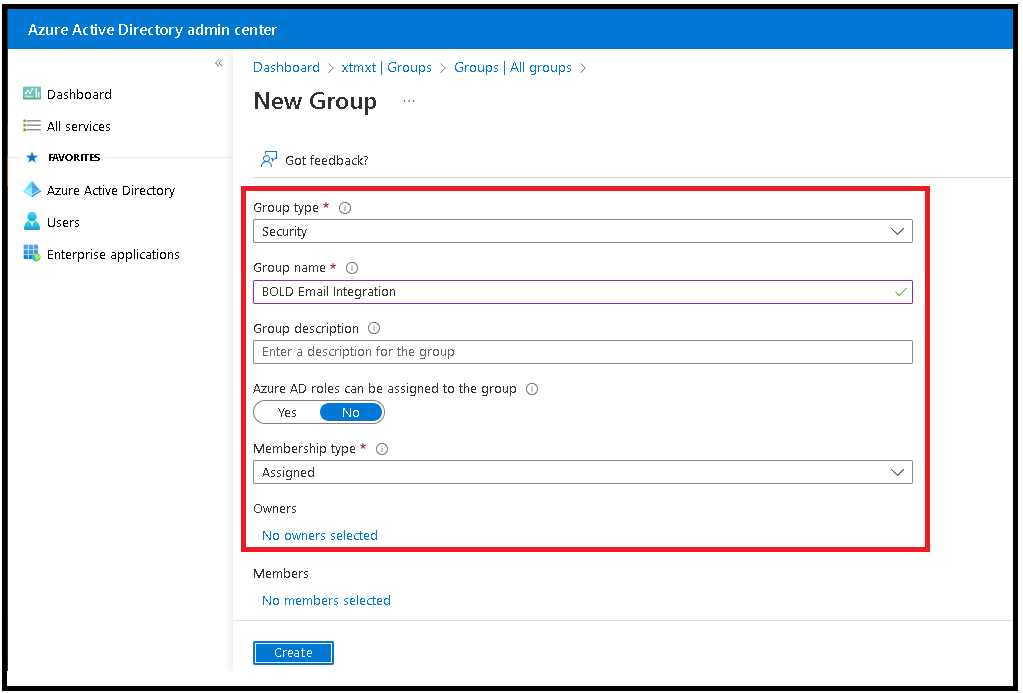

    4. Enter information for the following fields:
      1. Group Type: Select the Security option
      2. Group name: BOLD_Email_Integration
        1. Note: We recommend not to include any spaces and use underscores instead.
      3. Group description: Enter a brief description of the Group
      4. Azure AD roles can be assigned to the group: Toggle the switch to No
      5. Membership type: Select the Assigned option
      6. Owners: No changes are needed

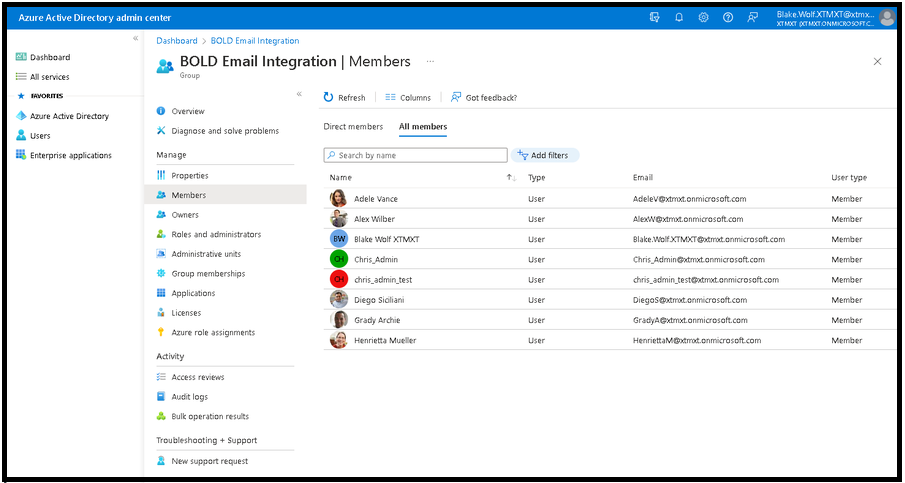

      7. Members: Click on the No members selected link
        1. Select all the members/users

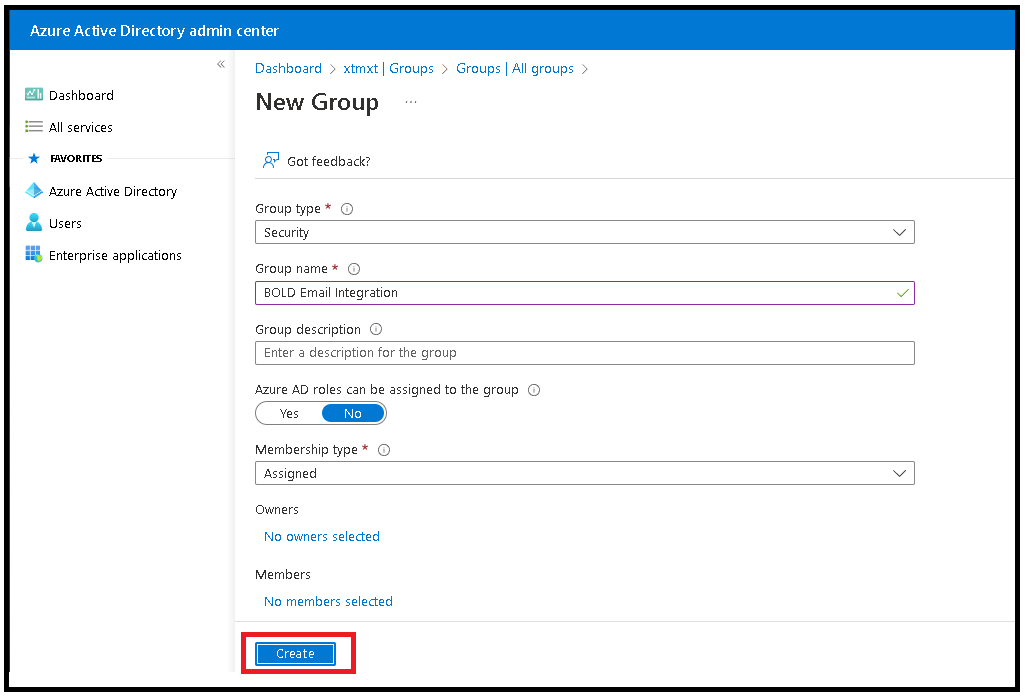

    5. Click on the Create button






Add a new Group to the Application

Select Enterprise Apps and BOLD Email Integration to add this group to the new Application

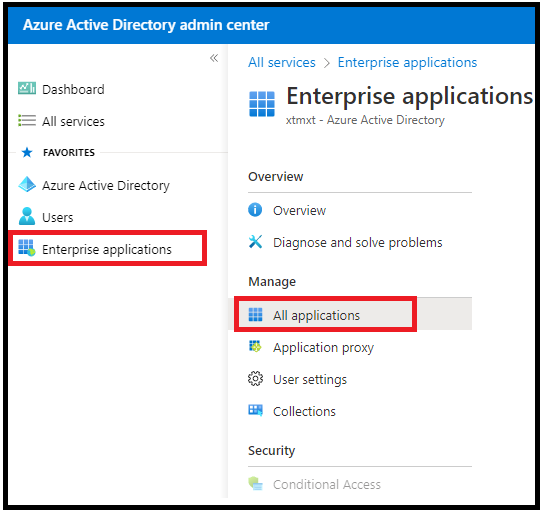

  1. Click on Enterprise applications

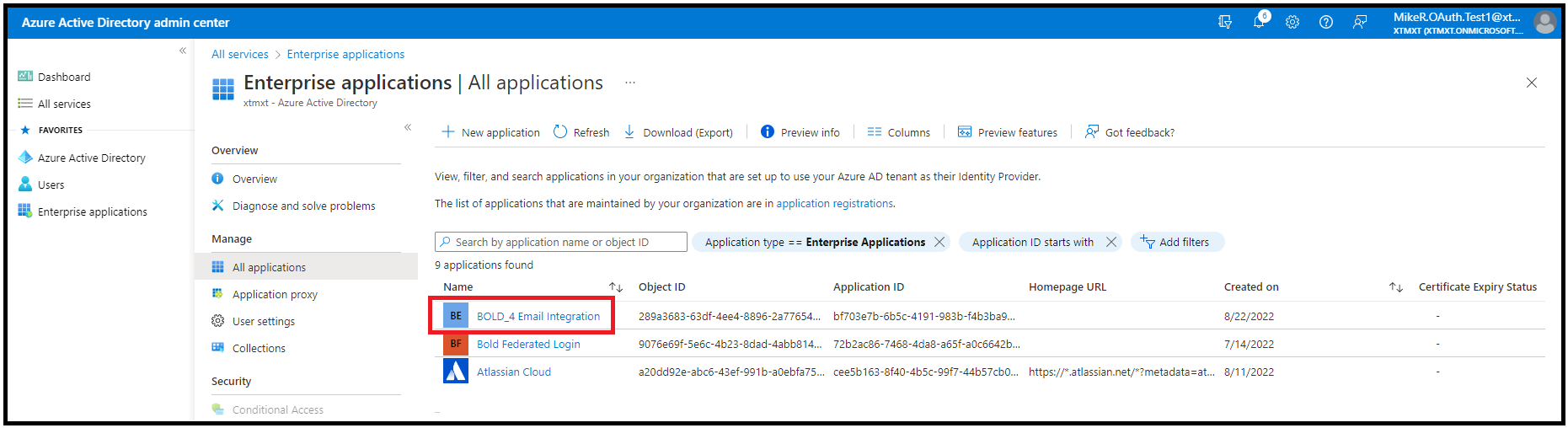

  2. Click on All applications


  3. Click on the link for your Application, in the Name field.
    Verify that the Name is BOLD Email Integration (or the name used when initially creating).  This is the name that was created for registering the App.
    Section on registering the App

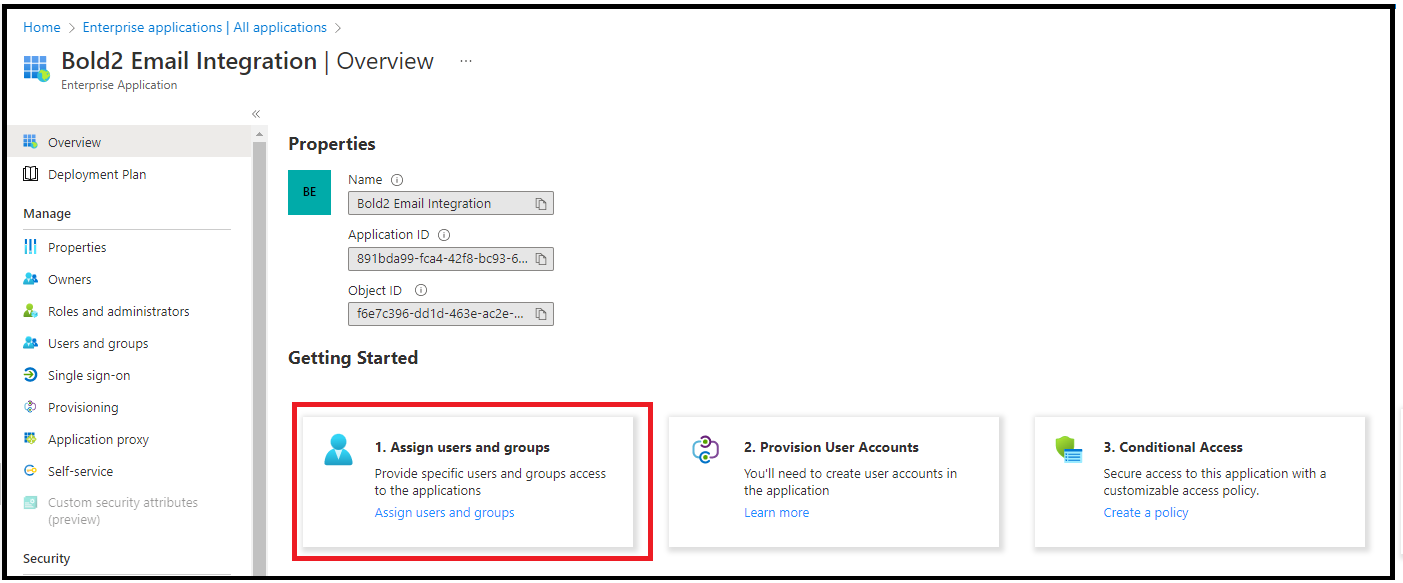

  4. Click on the Assign users and groups link

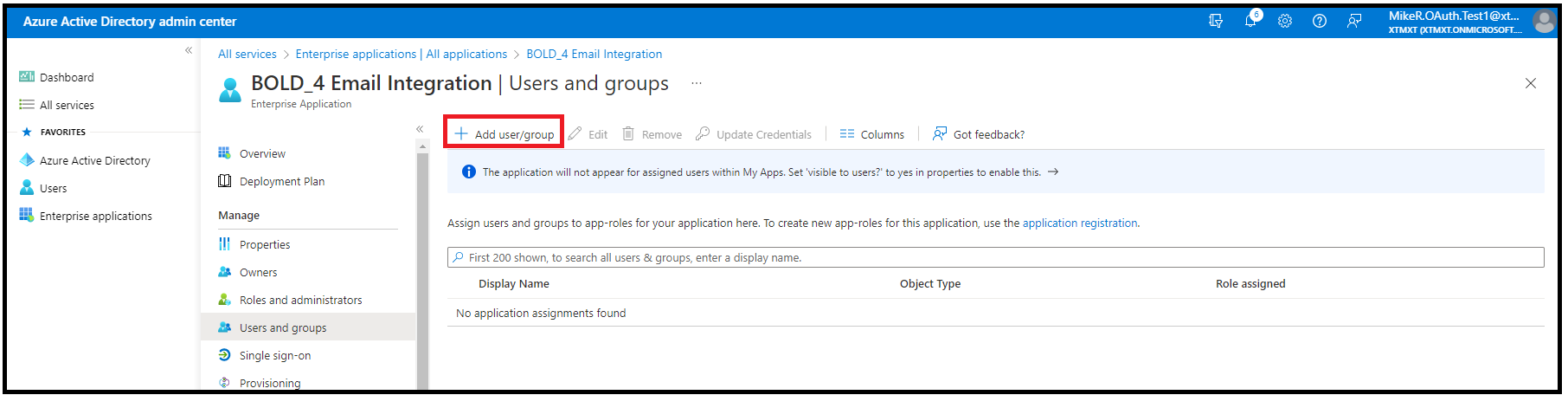

  5. Click on Add user/group
    Note: : This list may initially be blank

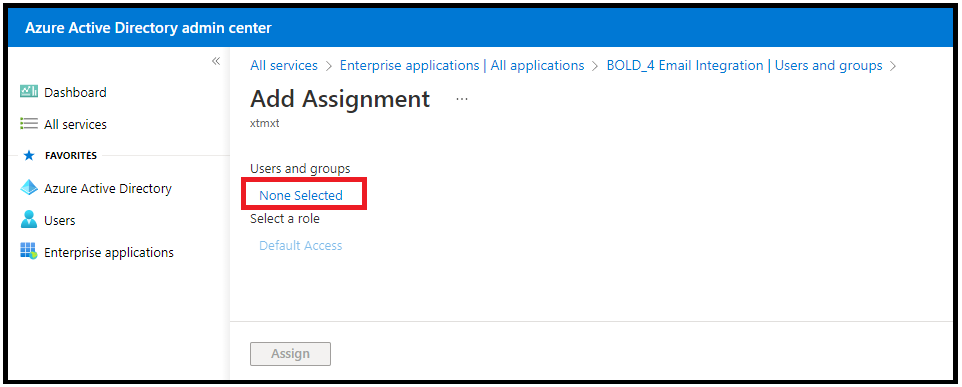

  6. Click on the None Selected link

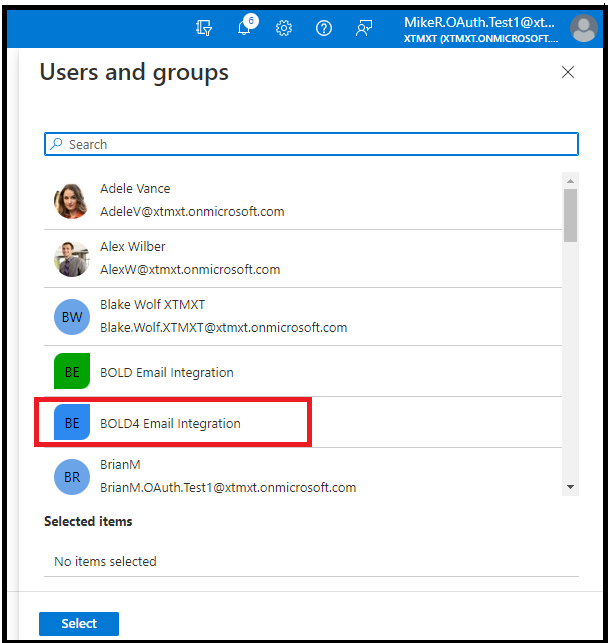

  7. Click on the User Group that was created in a previous step.
    Note: Depending on the Azure Active Directory Plan, User Groups may not be available to select.
    This is the name that was created for the user group.
    Section on creating a user group


    1. If the Azure Active Directory Plan is a Free Tier, then the ability to select User Groups is not allowed.

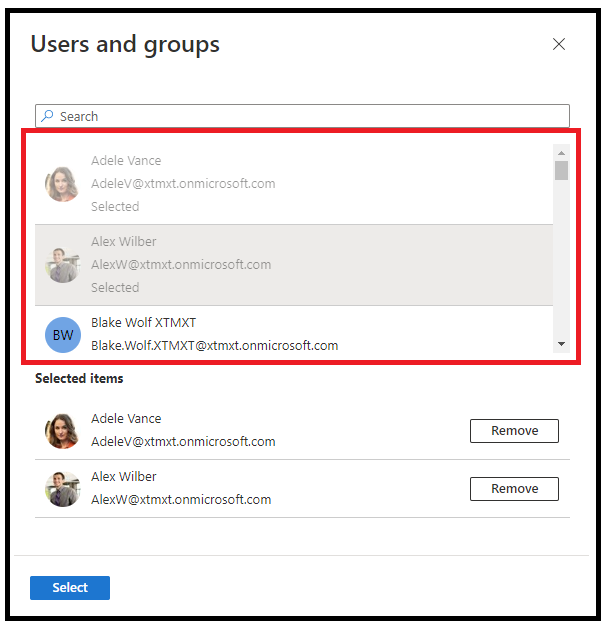

      1. Instead, please select all the Users

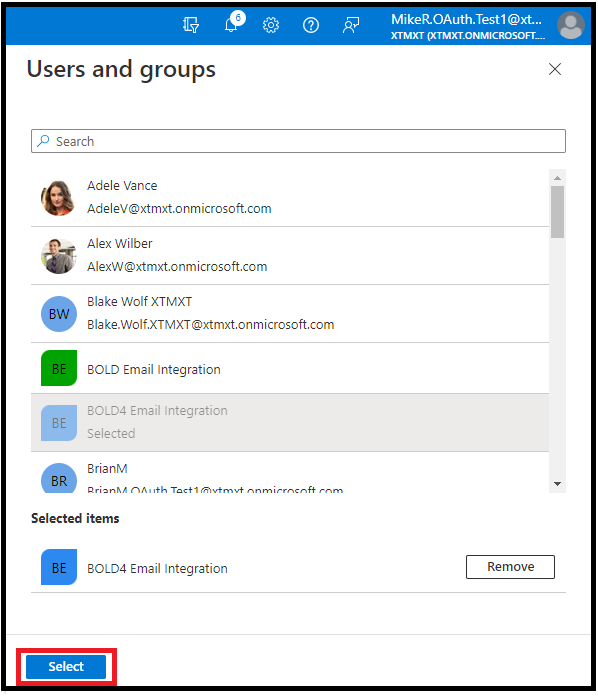

  8. Click on the Select button

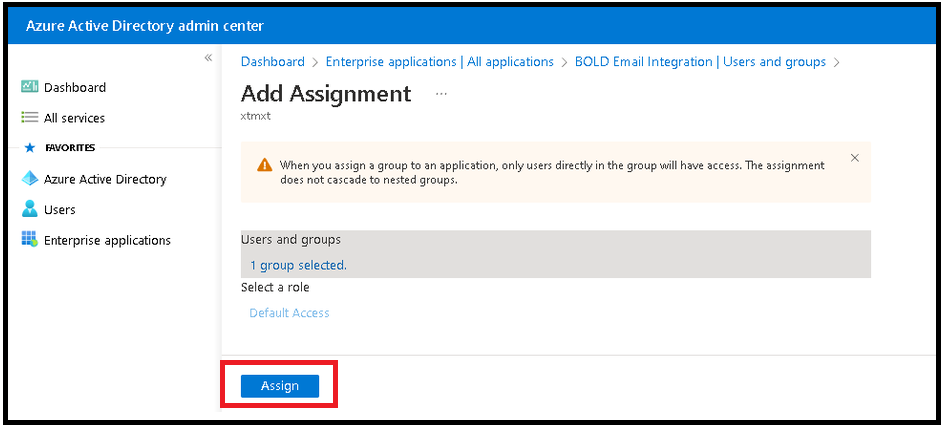

  9. Click on the Assign button




References

Outlook Service Limits

From the Microsoft article, Microsoft Graph service-specific throttling limits:

"Outlook service limits are evaluated for each App ID and mailbox combination. In other words, the limits described apply to a specific App accessing a specific mailbox (user or group). If an application exceeds the limit in one mailbox, it does not affect the ability to access another mailbox. The following limits apply to the public cloud as well as national cloud deployments."

Limit Applies To
10,000 API requests in a 10-minute period v1.0 and beta endpoints
4 concurrent requests v1.0 and beta endpoints
15 megabytes (MB) upload (PATCH, POST, PUT) in a 30-second period v1.0 and beta endpoints
